Daikin Ducted Inverter 16.0kw Reverse Cycle Air-Conditioner FDYAN160AV1/RZA160C2V1
Daikin Ducted Inverter 16.0kw Reverse Cycle Air-Conditioner FDYAN160AV1/RZA160C2V1
Couldn't load pickup availability
SKU:
INDOOR MODEL: FDYAN160AV1

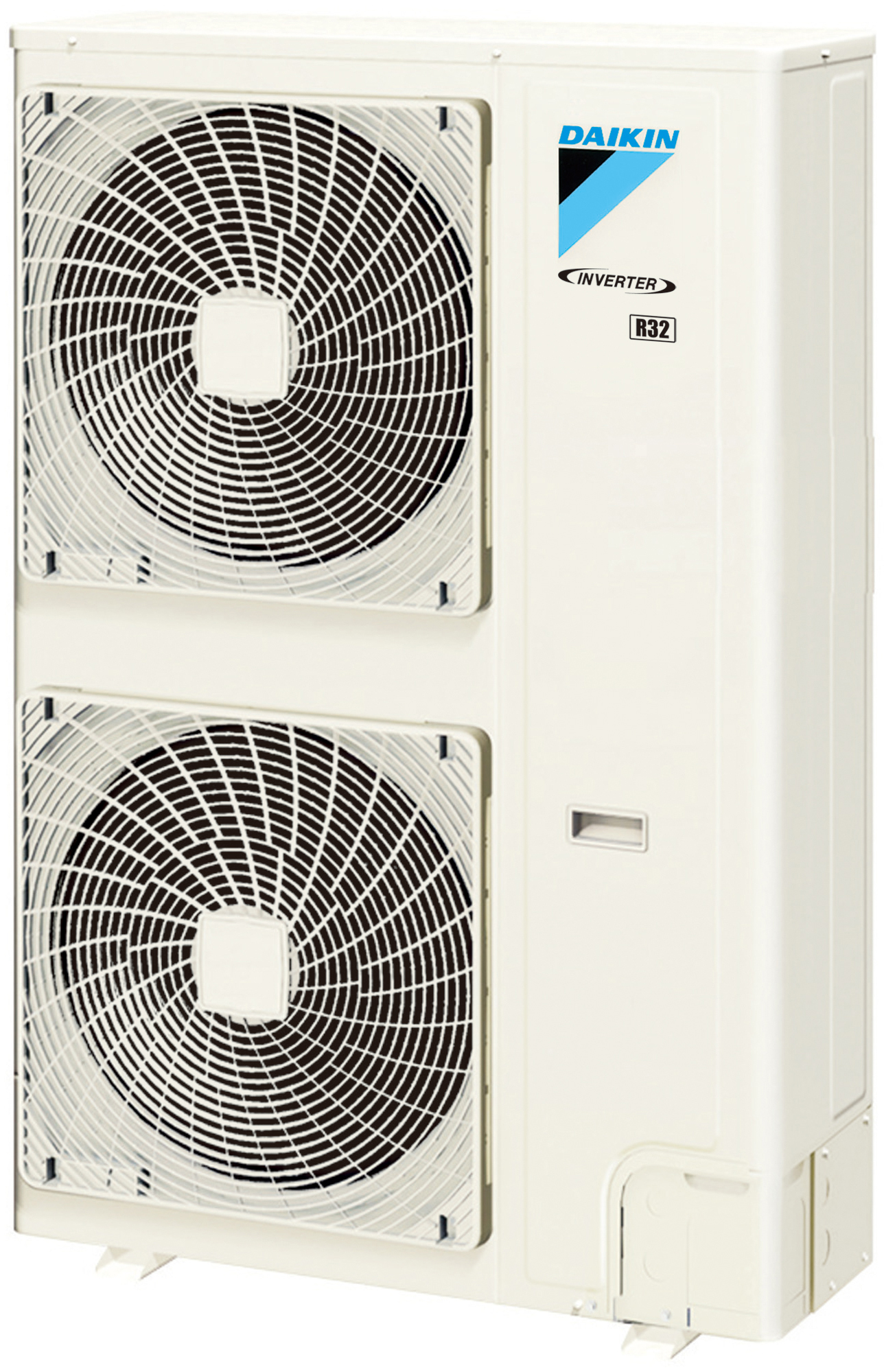

OUTDOOR MODEL: RZA160C2V1
(Single phase)
A Daikin ducted system provides discreet air conditioned comfort throughout your entire home. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home
SPECS
| INDOOR UNIT | FDYAN160AV1 | |
| OUTDOOR UNIT | RZA160C2V1 | |
| Rated Capacity | Cool (kW) | 15.5 |
| Heat (kW) | 18.0 | |
| Capacity Range | Cool (kW) | 7.3-16.3 |
| Heat (kW) | 7.3-18.2 | |
| Power Input (Rated) | Cool (kW) | 4.95 |
| Heat (kW) | 4.90 | |
| E.E.R./C.O.P. | Cool/Heat | 3.13/3.67 |
| Air Flow Rate (Rated) | I/S | 950 |
| Indoor Sound Level (@1.5m) | dBA | 47.9/50.7 |
| Piping Length | (m) | 50 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 360x1520x935 |
| Outdoor (mm) | 1430x940x320 | |
| Weight | Indoor(kg) | 56 |
| Outdoor(kg) | 99 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | 9.5 (Flared) |
| Gas (mm) | 15.9 (Flared) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 245x1152 |
| Return Air Opening | mm (Oval) | 2x400 (Oval) |
| Outdoor Operating Range | Cool (°CDB) | - 5 to 46 |
| Heat (°CWB) | - 15 to 16 | |
| EPA Sound Power Level | dBA | 75 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 56/58 |
Daikin
Daikin BRC1E63 Controller
Share
More info
SPECS
System:
- Reverse Cycle
- Indoor Type: Wall Mounted
- Power Supply:1 Phase, 220-240, 50Hz
- Refrigerant:R32
Capacity:
- 7.1kW Cooling
- 8.0kW Heating
WEIGHT
45KG
WARRANTY
Warranty starts from the Invoice Date
5-Year Warranty
The Daikin '5-Year Parts and Labour' warranty applies to all Daikin split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Daikin, you do so with the confidence of knowing you have many years of worry-free comfort ahead.
